Sector
Oil & Gas
Project Code
416

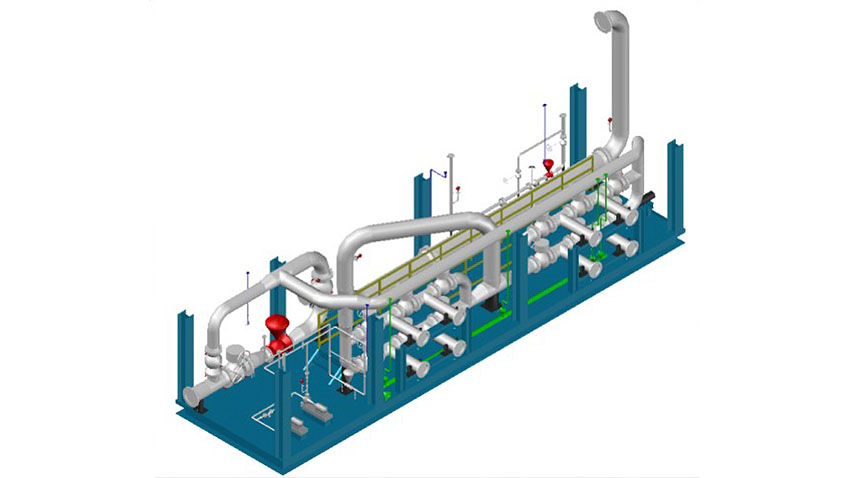

Preparation of layouts and 3D modeling of 17 process skids, considering the rigging and logistics equipment available.
Dimensions:
- Maximum: (length = 17.0 m) x (width = 5.0 m) x (height = 3.1 m)
- Minimum: (length = 6.2 m) x (width = 3.2 m) x (height = 3.1 m)
Service Performed
Multidisciplinary Engineering - Conceptual
Scope:
Pre-Detailing, CAE and SPPID Services.
